200kWh / 215kWh / 225kWh / 241kWh

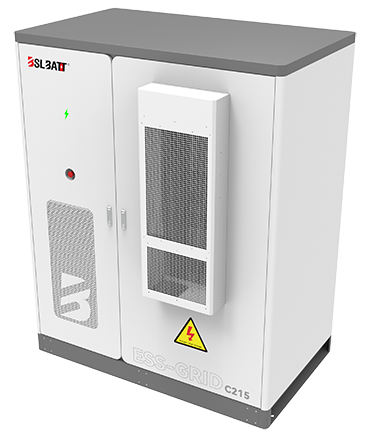

C&I ESS Battery System
The C&I ESS Battery System is a standard solar energy storage system designed by BSLBATT with multiple capacity options of 200kWh / 215kWh / 225kWh / 245kWh to meet energy needs such as peak shifting, energy back-up, demand response, and increased PV ownership.
All-in-one Integrated Energy Storage System Design Inside the Cabinet
BSLBATT Commercial solar battery system boasts outstanding performance, making it versatile for applications in farms, livestock, hotels, schools, warehouses, communities, and solar parks. It supports grid-tied, off-grid, and hybrid solar systems, can be used with diesel generators. This commercial energy storage system comes in multiple capacity options: 200kWh / 215kWh / 225kWh / 241kWh.

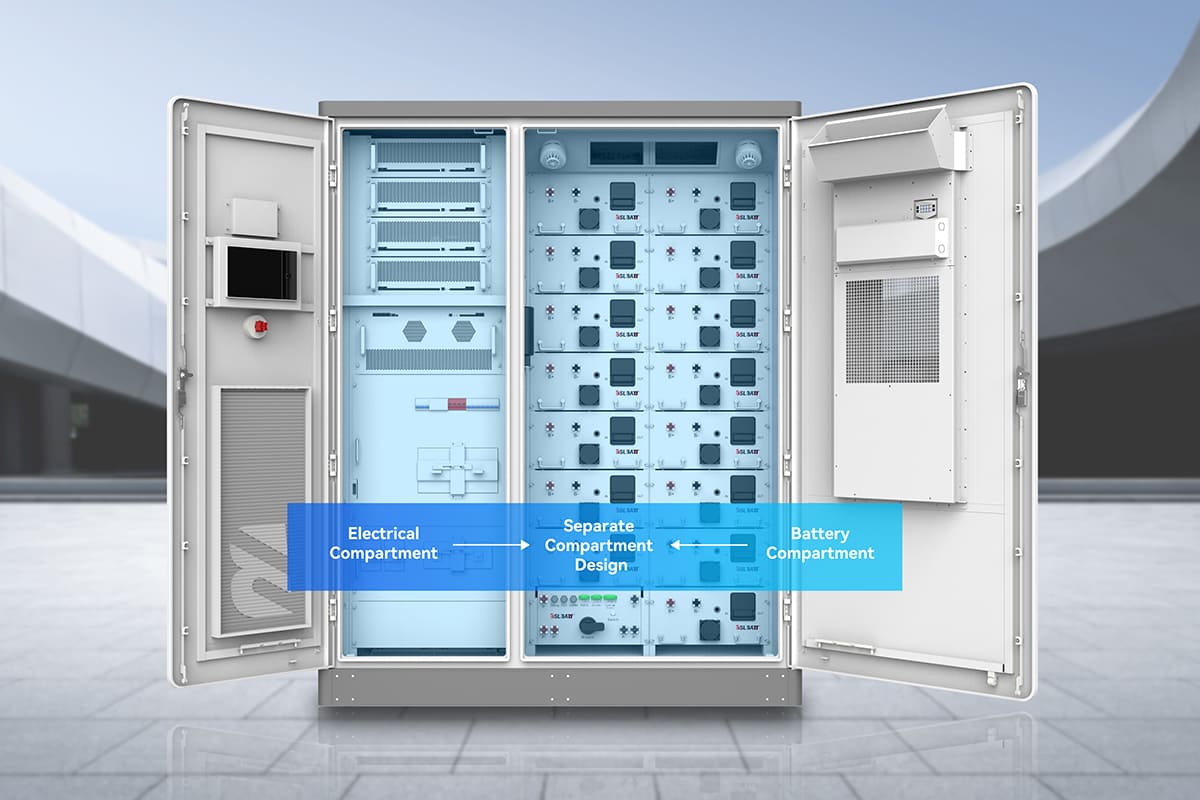

Compartmentalized Design
The BSLBATT 200kWh Battery Cabinet utilizes a design that separates the battery pack from the electrical unit, increasing the safety of the cabinet for energy storage batteries.

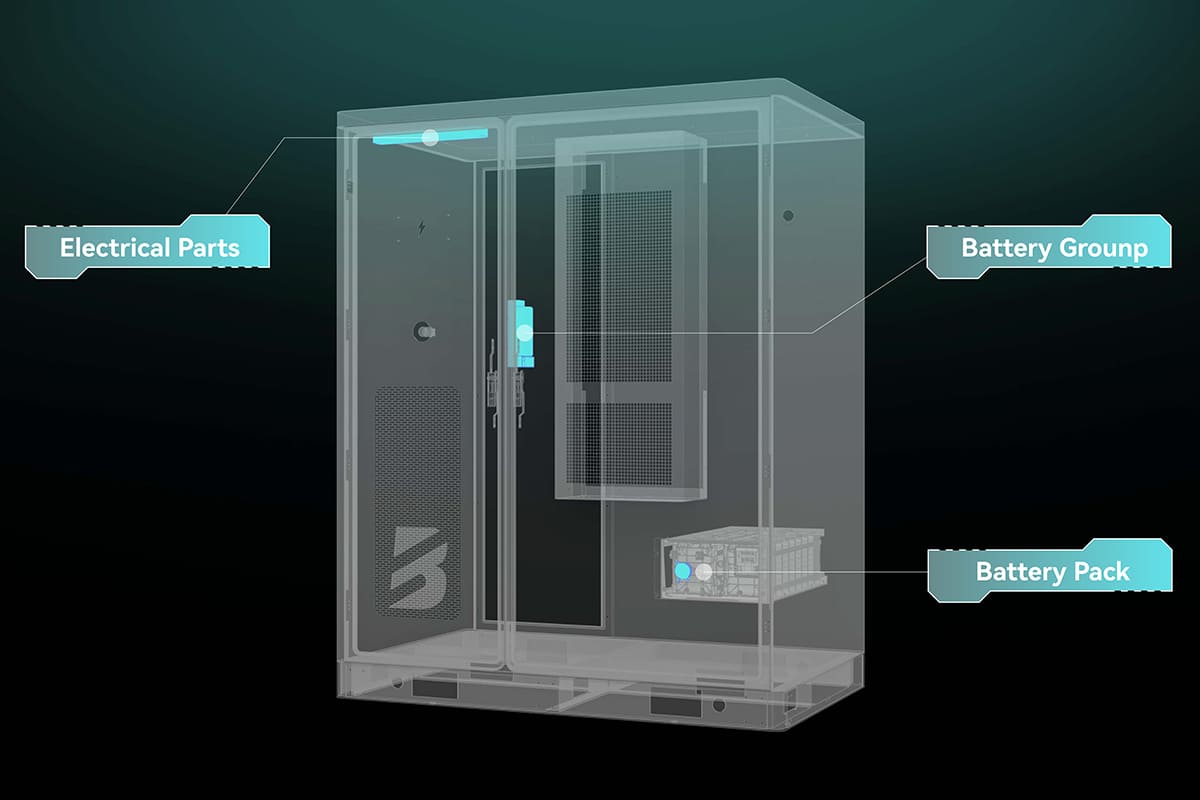

3 Level Fire Safety System
BSLBATT C&I ESS Battery has the world's leading battery management technology, including dual integration of active and passive fire protection, and the product setup has PACK level fire protection, group level fire protection, and dual-compartment level fire protection.

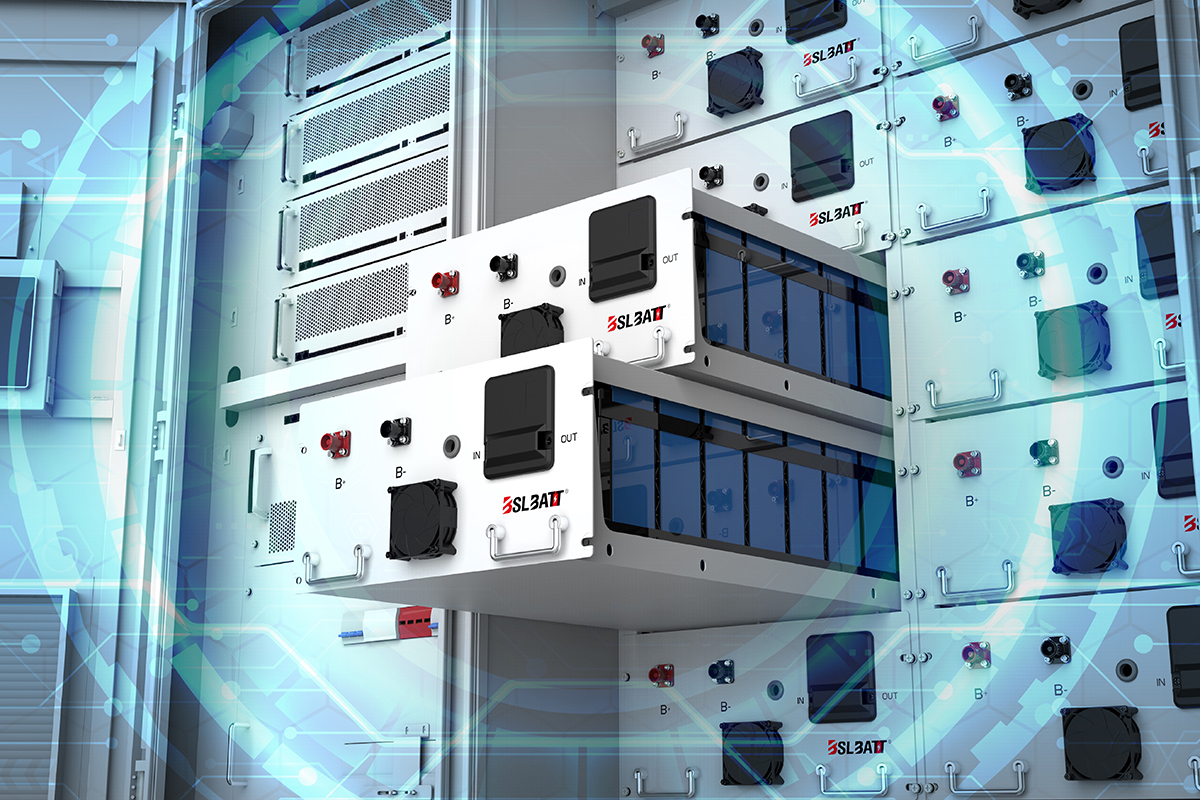

314Ah / 280Ah Lithium Iron Phosphate Cells
Large Capacity Design
Significant increase in energy density of battery packs
Advanced LFP Module Patent Technology
Each module adopts CCS, with a single PACK capacity of 16kWh.
Higher Energy Efficiency
Guaranteed energy efficiency/cycle with high energy density design, >95% @0.5P/0.5P

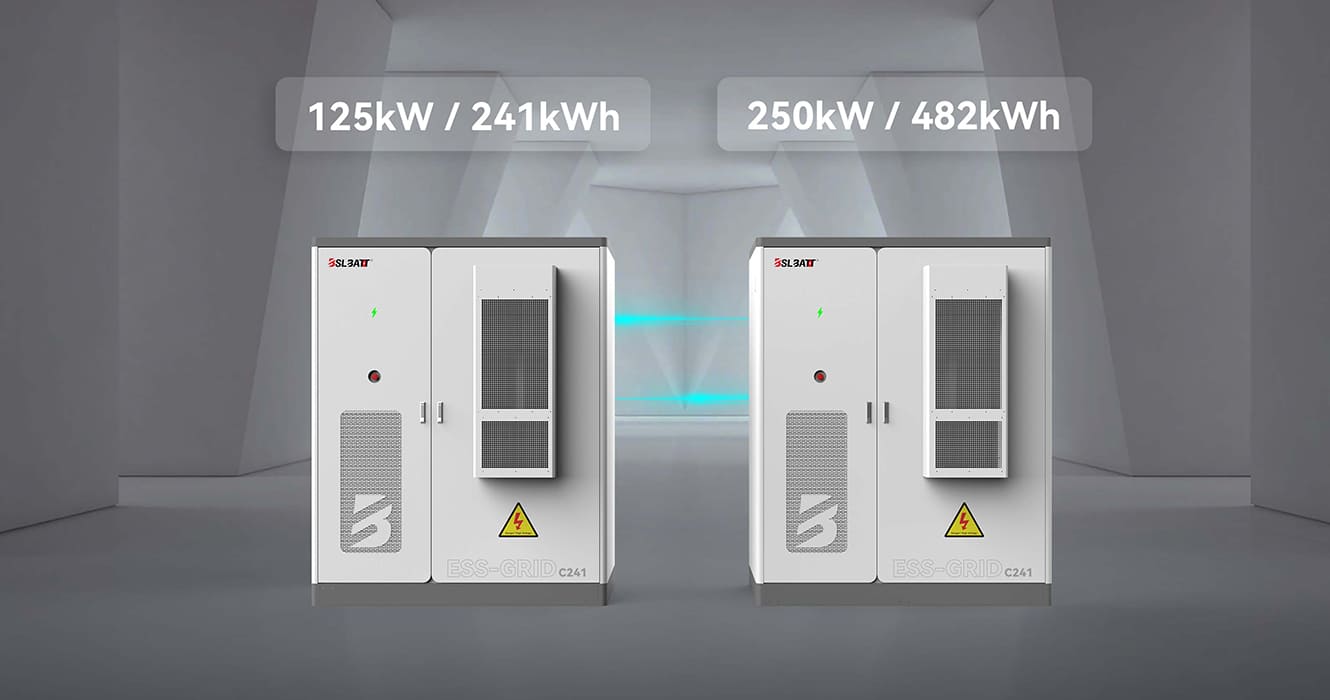

AC side ESS Cabinet Expansion
AC side interface is reserved to support parallel connection of 2 units in grid-connected or off-grid system.

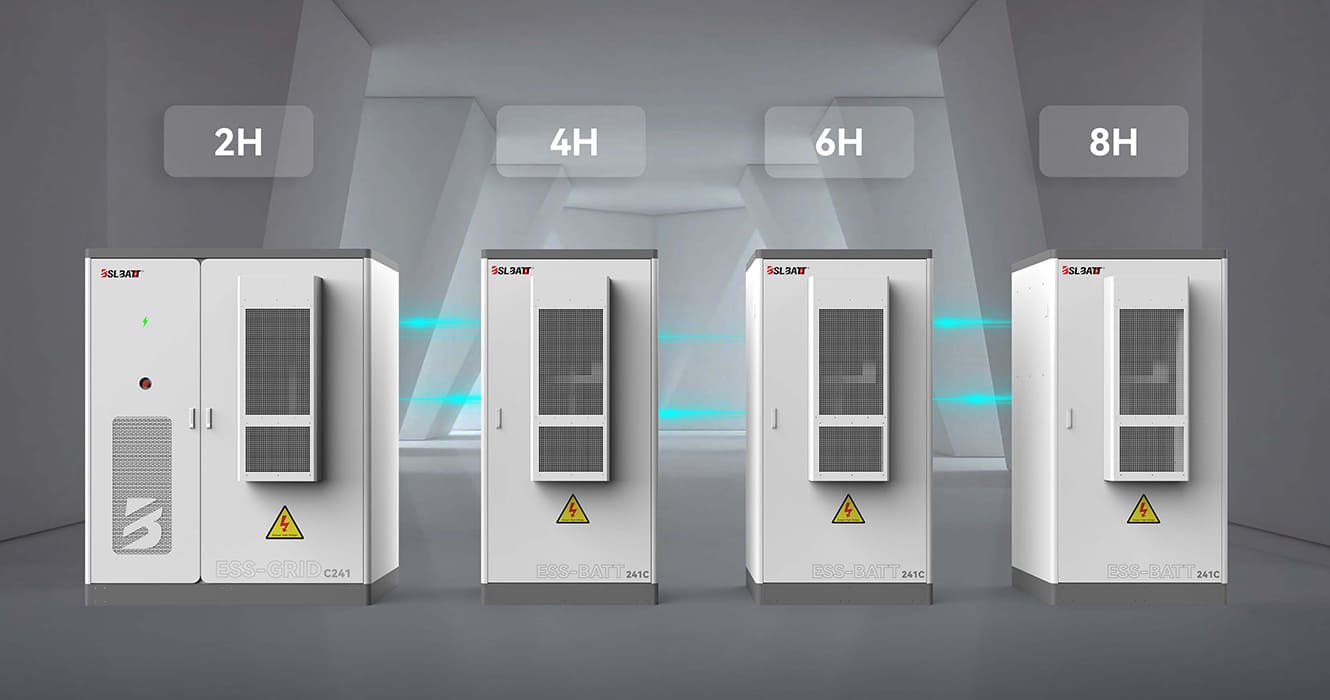

DC Side ESS Cabinet Expansion
A standard 2-hour power backup solution is available for each cabinet, and the independent dual DC port design makes it easy to connect multiple cabinets for a 4-, 6-, or 8-hour expansion solution.
-
Highly Integrated
The system is fully productized, integrating LFP ESS batteries, PCS , EMS, FSS, TCS, IMS, BMS.
-
Long Service Life
Comprised of Tier one A+ LFP Cell with over 6000 cycles and a service life of over 10 years.
-
Plug and Play
Integration of all energy storage system components, the output of which can be directly connected to the utility and photovoltaic systems. Multiple cabinets can be connected in parallel to realize the expansion of the energy storage system.
-
3D Visualization Technology
The display is able to present the instant status of each module in a stereoscopic three-dimensional way, providing an intuitive and interactive monitoring experience.
-
Versatile Features
Optional PV charging module, off-grid switching module, inverter, STS and other accessories are available for microgrid and other application scenarios.
-
Intelligent Management
The local control screen enables diverse functions, including system operation monitoring, energy management strategy formulation, remote device upgrades, and more.
| Item | General Parameter | |||
| Model | ESS-GRID C200 | ESS-GRID C215 | ESS-GRID C225 | ESS-GRID C245 |
| System Parameter | 100kW/200kWh | 100kW/215kWh | 125kW/225kWh | 125kW/241kWh |
| Cooling Method | Air-cooled | |||
| Battery Parameters | ||||
| Rated Battery Capacity | 200.7kWh | 215kWh | 225kWh | 241kWh |
| Rated System Voltage | 716.8V | 768V | 716.8V | 768V |
| Battery Type | Lithium lron Phosphate Battery (LFP) | |||
| Cell Capacity | 280Ah | 314Ah | ||
| Battery Connection Method | 1P*16S*14S | 1P*16S*15S | 1P*16S*14S | 1P*16S*15S |
| PV Parameters (Optional; none /50kW/150kW) | ||||
| Max. PV Input Voltage | 1000V | |||
| Max. PV Power | 100kW | |||
| MPPT Quantity | 2 | |||
| MPPT Voltage Range | 200-850V | |||
| MPPT Full Load Open Circuit Voltage Range (Recommended)* |
345V-580V | 345V-620V | 360V-580V | 360V-620V |
| AC Parameters | ||||
| Rated AC Power | 100kW | |||
| Nominal AC Current Rating | 144 | |||
| Rated AC Voltage | 400Vac/230Vac ,3W+N+PE /3W+PE | |||
| Rated Frequency | 50Hz/60Hz(±5Hz) | |||
| Total Current Harmonic Distortion (THD) | <3% (Rated Power) | |||
| Power Factor Adjustable Range | 1 Ahead ~ +1 Behind | |||
| General Parameters |
||||
| Protection Level | IP54 | |||
| Fire Protection System | Aerosols / Perfluorohexanone / Heptafluoropropane | |||
| Isolation Method | Non-isolated (Optional Transformer) | |||
| Operating Temperature | -25℃~60℃ (>45℃ derating) | |||
| Poster Height | 3000m(>3000m Derating) | |||
| Communication Interface | RS485/CAN2.0/Ethernet/Dry contact | |||
| Dimension (L*W*H) | 1800*1100*2300mm | |||
| Weight (With Batteries Approx.) | 2350kg | 2400kg | 2450kg | 2520Kg |
| Certification | ||||
| Electric Safety | IEC62619/IEC62477/EN62477 | |||
| EMC (Electromagnetic Compatibility) | IEC61000/EN61000/CE | |||
| Grid-connected And Islanded | IEC62116 | |||
| Energy Efficiency And The Environment | IEC61683/IEC60068 | |||
