200kWh-241kWh Lithium C&I
Energy Storage Battery For Solar
The BSLBATT C&I Energy Storage Battery is IP54 rated and can be placed in sheltered outdoor areas and is air-conditioned for cooling, reducing maintenance costs. There are four different capacity options, 200kWh / 215kWh / 220kWh / 241kWh, based on different cell compositions. The battery system offers unmatched energy storage capacity, ensuring a reliable and continuous supply of power for demanding applications.
Explore Our Newest Energy Storage Batteries for C&I

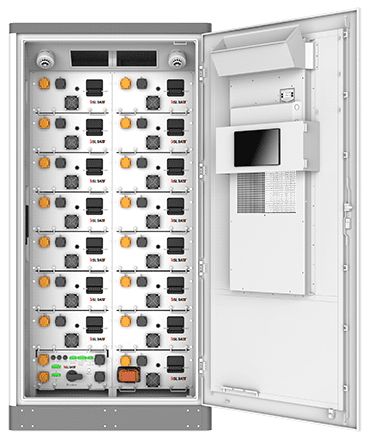

The Energy Storage Battery is mounted in an outdoor cabinet and includes modules for temperature control, BMS and EMS, smoke sensors, and fire protection.
The DC side of the battery is already wired internally, and only the AC side and external communication cables need to be installed on site.
Individual battery packs are composed of 3.2V 280Ah or 314Ah Li-FePO4 cells, each pack is 16SIP, with an actual voltage of 51.2V.
Product Features
Long Life
Over 6000 cycles @ 80% DOD
Modular Design
Expandable by parallel connection
Highly Integration
Built-in BMS, EMS, FSS, TCS, IMS
More Safety
IP54 Industrial-strength housing to withstand harsh weather conditions
High Energy Density
Adopting 280Ah/314Ah high capacity battery cell, energy density 130Wh/kg.
Lithium iron Phosphate
Safe and environmentally friendly, higher thermal stability
Integrated Solutions with High-voltage Three-phase Hybrid Inverters
- Recharge batteries from the grid when electricity prices are low and use them when electricity prices are high
- Serve as a backup power source during power outages - increasing energy independence
- Easy to install, upgrade and integrate with existing solar PV systems
- Monitoring and control through easy-to-use apps
| Item | General Parameter | |||
| Model | 16S1P*14=224S1P | 16S1P*15=240S1P | 16S1P*14=224S1P | 16S1P*15=240S1P |
| Cooling Method | Air-cooling | |||
| Rated Capacity | 280Ah | 314Ah | ||
| Rated Voltage | DC716.8V | DC768V | DC716.8V | DC768V |
| Operating Voltage Range | 560V~817.6V | 600V~876V | 560V~817.6V | 600V~876V |
| Voltage Range | 627.2V~795.2V | 627.2V~852V | 627.2V~795.2V | 627.2V~852V |
| Battery Energy | 200kWh | 215kWh | 225kWh | 241kWh |
| Rated Charge Current | 140A | 157A | ||
| Rated Discharge Current | 140A | 157A | ||
| Peak Current | 200A(25℃, SOC50%, 1min) | |||
| Protection Level | IP54 | |||
| Firefighting Configuration | Pack level + Aerosol | |||
| Discharge Temp. | -20℃~55℃ | |||
| Charge Temp. | 0℃~55℃ | |||
| Storage Temp. | 0℃~35℃ | |||
| Operating Temp. | -20℃~55℃ | |||
| Cycle Life | ＞6000 Cycles (80% DOD @25℃ 0.5C) | |||
| Dimension(mm) | 1150*1100*2300(±10) | |||
| Weight(With Batteries Approx.) | 1580Kg | 1630Kg | 1680Kg | 1750Kg |
| Dimension(W*H*D mm) | 1737*72*2046 | 1737*72*2072 | ||
| Weight | 5.4±0.15kg | 5.45±0.164kg | ||
| Communication Protocol | CAN/RS485 ModBus/TCP/IP/RJ45 | |||
| Noise Level | ＜65dB | |||
| Functions | Pre-charge, Over-Less Voltage/Over-Less Temperature Protection, Cells Balancing/SOC-SOH Calculation etc. |
|||
