200kWh 665V 304Ah
Commercial & Industrial Battery Storage
Designed for "behind-the-meter" microgrids, C&l energy backup, solar farms, community power generationelectric vehicle charging, and data center applications, the ESS-GRlD S304 series features a master-slavemechanism multi-tier battery management system (BMS) that monitors, optimizes, and proactively balancesthe system.

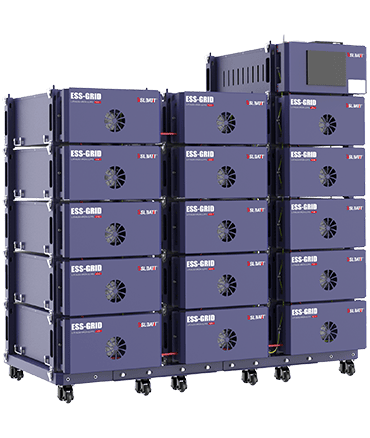

BSLBATT Compact Commercial & Industrial Battery Storage for Indoor Use
This solar battery storage system features a 155kWh/171kWh/186kWh/202kWh/217kWh/233kWh/241kWh battery capacity and is specifically engineered to deliver reliable, long-lasting power to industrial and commercial operations.
This battery is powered by EVE 3.2V 304Ah Lithium Iron Phosphate cells with BSLBATT vehicle-grade battery module design, which can last up to 15 years with more than 6,000 cycles.
Feature Description
Long Cycle LiFe
>6000 Cycles
Equipped with An
Aerosol Fire Extinguisher
High Density
Over 125Wh/kg
WIFI Function, Remote
AOT One-click Upgrade
Modular Design for Rapid
Expansion and Installation
Maximum 1C
Charge and Discharge

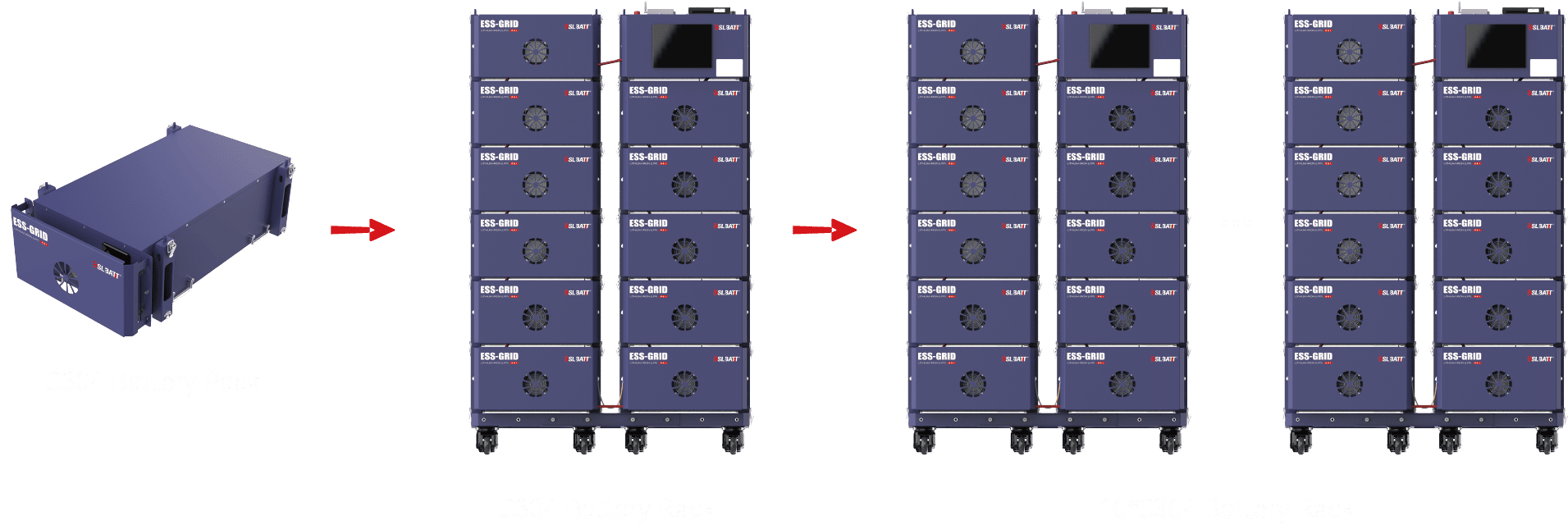

Max. Parallel Connection of 10 Groups
Max. Capacity 2.49MWh
| ESS-GRID | S304-10 | S304-11 | S304-12 | S304-13 | S304-14 | S304-15 | S304-16 |
| Rated Voltage(V) | 512 | 563.2 | 614.4 | 665.6 | 716.8 | 768 | 819.2 |
| Rated Capacity(Ah) | 304 | ||||||
| Cell Model | LFP-3.2V 304Ah | ||||||
| System Configuration | 160S1P | 176S1P | 192S1P | 208S1P | 224S1P | 240S1P | 256S1P |
| Rate Power(kWh) | 155.6 | 171.2 | 186.8 | 202.3 | 217.9 | 233.5 | 241.0 |
| Charge Upper Voltage(V) | 568 | 624.8 | 681.6 | 738.4 | 795.2 | 852 | 908.8 |
| Discharge Lower Voltage(V) | 456 | 501.6 | 547.2 | 592.8 | 638.4 | 684 | 729.6 |
| Recommended Current(A) | 152 | ||||||
| Max. Charging Current(A) | 200 | ||||||
| Max. Discharging Current(A) | 200 | ||||||
| Dimension(L*W*H)(MM) | High Voltage Control Box | 501*840*250 | |||||
| Single Battery Pack | 501*846*250 | ||||||
| Number of Series | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Communication Protocol | CAN BUS / Modbus RTU | ||||||
| Host Software Protocol | CANBUS (Baud rate @500Kb/s or 250Kb/s) | ||||||
| Operation Temperature Range | Charge:0~55℃ | ||||||
| Discharge: -20~55℃ | |||||||
| Cycle Life(25°C) | ＞6000 @80%DOD | ||||||
| Protection Level | IP20 | ||||||
| Storage Temperature | -10°C~40°C | ||||||
| Storage Humidity | 10%RH ~90%RH | ||||||
| Internal Impedance | ≤1Ω | ||||||
| Warranty | 10 years | ||||||
| Battery Life | ≥15 years | ||||||
| Weights(KG) | 1214 | 1329 | 1463 | 1578 | 1693 | 1808 | 1923 |
