Server rack batteries are flexible energy storage modules that were once more commonly used in data centres, server rooms, communications base stations and other large-scale facilities, and are usually installed in 19-inch cabinets or racks, where their main purpose is to provide continuous uninterruptible power to core equipment and ensure that critical equipment can continue to operate in the event of a power grid disruption.
With the development of renewable energy storage, the advantages of rack batteries are gradually revealed in the solar energy storage system, and gradually become an important part of the irreplaceable.
Main Functions and Roles of Rack Batteries
Rack batteries are a type of battery pack with high energy density, which can store power from solar, grid and generator in energy storage applications, and its main role and function, mainly contains the following 4 points:
- Uninterruptible Power Supply (UPS):
Provides temporary power to equipment during power interruptions to ensure uninterrupted data and stable system operation.
- Power backup:
When the main power supply is unstable (e.g. voltage fluctuation, instantaneous power failure, etc.), the rack battery can smoothly supply power to prevent equipment damage.
- Load balancing and energy management:
Can be combined with a power management system to achieve load balancing and energy consumption optimisation, improving overall power usage efficiency.
- Reduce home energy costs:
Increases PV self-consumption by storing excess power from the PV system during the day and using energy from the batteries when electricity costs increase.
What Are All The Outstanding Features of Server Rack Batteries?
- Efficient Energy Density:
Rack batteries typically use high energy density battery technology, such as lithium-ion or lithium iron phosphate, to provide longer power delivery and higher performance in a limited space.
- Modular design:
Lightweight and designed to be modular, they can be scaled up or down as needed to accommodate residential and commercial/industrial energy storage scenarios with varying energy needs, and these batteries can be either low-voltage or high-voltage systems.
- Scenario Flexibility:
Standard cabinets or racks can be used for outdoor and indoor installation, easy and quick installation, removal and maintenance, and damaged battery modules can be replaced at will without delaying normal use.
- Intelligent Management System:
Equipped with advanced battery management and monitoring system, it can monitor the battery status, life and performance in real time, and provide fault warning and remote management functions.
Top Rack Battery Brands and Models

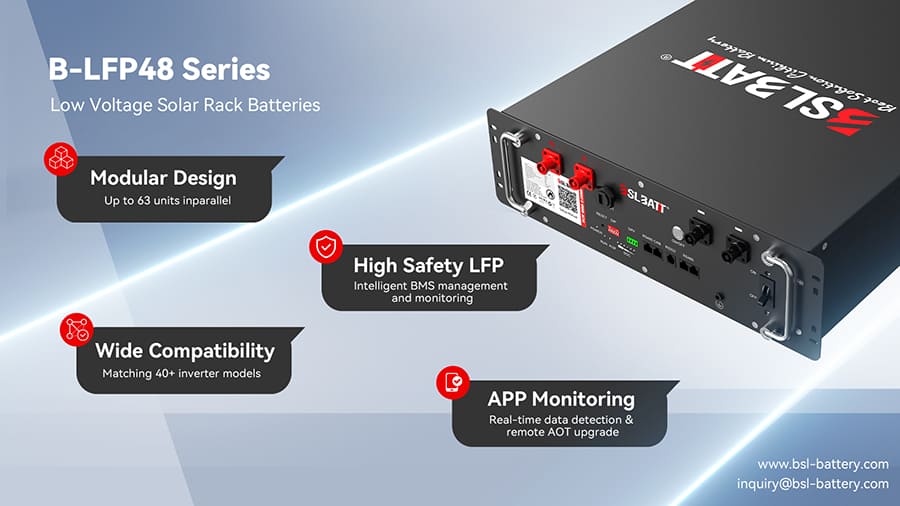

BSL Energy B-LFP48-100E
Product Features
- 5.12 kWh useable capacity
- Up to max. 322 kWh
- Continuous 1C discharge
- Maximum 1.2C discharge
- 15+ years of service life
- 10 years warranty
- Supports up to 63 parallel connections
- 90% depth of discharge
- Dimensions.
- Dimensions.
BSLBATT Rack Batteries are the best solution for residential and commercial energy storage. We have several models to choose from, all of which are composed of Tier One A+ Lithium Iron Phosphate (LiFePO4) cells, which are usually sourced from EVE and REPT, the world’s top 10 LiFePO4 brands.
The B-LFP48-100E rackmount battery adopts the 16S1P module, with an actual voltage of 51.2V, and has a powerful built-in BMS, which ensures the consistency of the battery and a longer service life, with more than 6,000 cycles at 25℃ and 80% DOD, and all of them adopt the CCS technology.
B-LFP48-100E is compatible with most of the inverter brands, such as Victron, Deye, Solis, Goodwe, Phocos, Studer, etc. BSLBATT provides 10 years warranty and technical support.
Pylontech US3000C
Product Features
- 3.55 kWh useable capacity
- Up to max. 454 kWh
- Continuous 0.5C discharge
- Maximum 1C discharge
- 15+ years of service life
- 10 years warranty
- Supports up to 16 parallel without hub
- 95% depth of discharge
- Dimensions: 442*410*132mm
- Weight: 32 kg
PAYNER is a leading battery brand in the residential energy storage market. Its server rack batteries are well proven in the market with over 1,000,000 users worldwide using its own developed Lithium Iron Phosphate (Li-FePO4) cells and BMS.
The US3000C adopts the 15S composition, the actual voltage is 48V, the storage capacity is 3.5kWh, the recommended charging and discharging current is only 37A, but it has an impressive 8000 cycles at 25℃ environment, the discharge depth can reach 95%.
The US3000C is also compatible with most inverter brands and is widely used in off-grid and hybrid systems, and is backed by a 5-year warranty, or 10 years by registering on its website.
BYD Energy B-BOX PREMIUM LVL
Product Features
- 13.8 kWh useable capacity
- Up to max. 983 kWh
- Rated DC power 12.8kW
- Maximum 1C discharge
- 15+ years of service life
- 10 years warranty
- Supports up to 64 parallel without hub
- 95% depth of discharge
- Dimensions: 500 x 575 x 650 mm
- Weight: 164 kg
BYD’s unique lithium iron phosphate (Li-FePO4) battery technology plays an important role in the electronics, automotive, renewable energy and rail related industries.
The B-BOX PREMIUM LVL is powered by a high-capacity 250Ah Li-FePO4 battery with a total storage capacity of 15.36kWh, and it has an IP20 enclosure rating, making it suitable for solutions ranging from residential to commercial.
The B-Box Premium LVL is compatible with external inverters, and with its control and communication port (BMU), the B-Box Premium LVL can be expanded according to project requirements, starting with the Battery-Box Premium LVL15.4 (15.4 kWh) and expanding at any time up to 983 by paralleling up to 64 batteries. kWh.

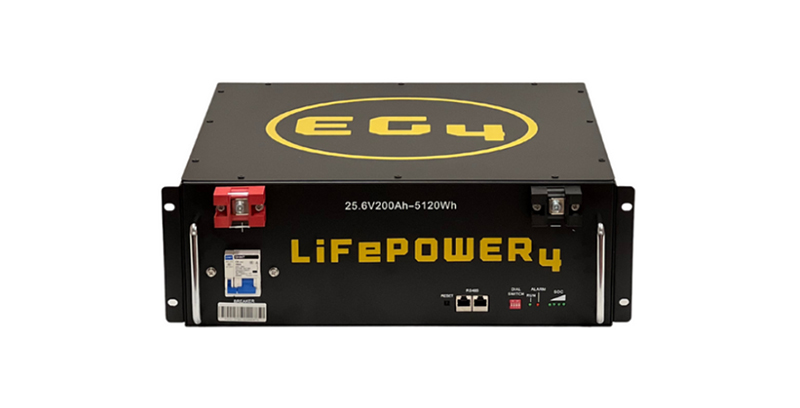

EG4 LifePower4
Product Features
- 4.096 kWh useable capacity
- Up to max. 983 kWh
- Peak power output is 5.12kW
- Continuous power output is 5.12kW
- 15+ years of service life
- 5 years warranty
- Supports up to 16 parallel without hub
- 80% depth of discharge
- Dimensions: 441.96x 154.94 x 469.9 mm
- Weight: 46.3 kg
Founded in 2020, EG4 is a subsidiary of Signature Solar, a Texas-based company whose solar cell products are primarily manufactured in China by James Showalter, a self-proclaimed ‘solar guru’.
The LiFePower4 is the EG4′s most popular battery model, and it is also a rackmount battery, consisting of a LiFePO4 16S1P battery with an actual voltage of 51.2V, a storage capacity of 5.12kWh, and a 100A BMS.
The rack battery claims to be able to discharge more than 7000 times at 80% DOD and last for more than 15 years. The product has already passed UL1973 / UL 9540A and other safety certificates in accordance with the U.S. market.

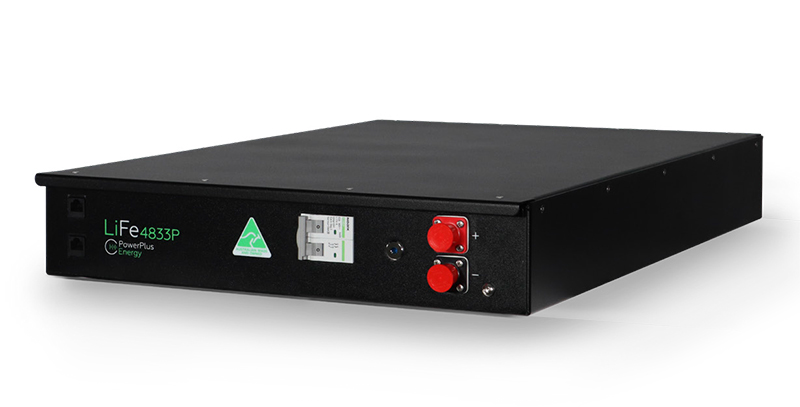

PowerPlus LiFe Premium Series
Product Features
- 3.04kWh useable capacity
- Up to max. 118 kWh
- Continuous power output is 3.2kW
- 15+ years of service life
- 10 years warranty
- Protection class IP40
- 80% depth of discharge
- Dimensions: 635 x 439 x 88mm
- Weight: 43 kg
PowerPlus is an Australian battery brand that designs and manufactures solar lithium batteries in Melbourne, providing customers with easy to use, scalable and durable products.
The LiFe Premium range, is a versatile racking battery suitable for a wide range of applications. They can store energy or provide power for residential, commercial, industrial or telecommunication applications. Includes LiFe4838P, LiFe4833P, LiFe2433P, LiFe4822P, LiFe12033P, and many other models.
The LiFe4838P has an actual voltage of 51.2V, 3.2V 74.2Ah cells, a total storage capacity of 3.8kWh, and a recommended cycle depth of 80% or less. The weight of this rack battery reaches 43kg, which is heavier than other batteries in the industry with the same capacity.

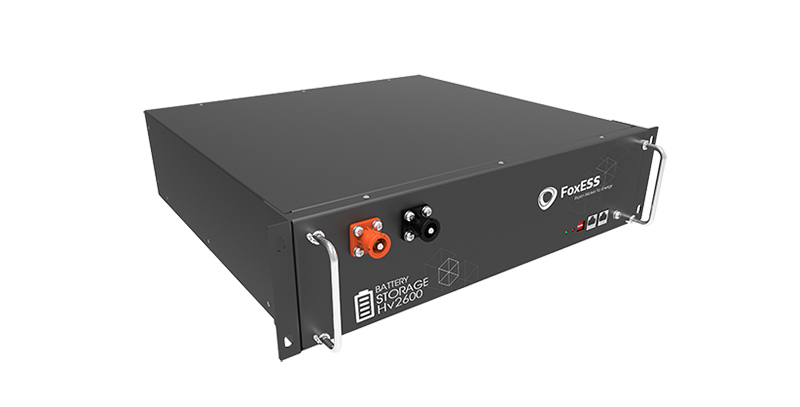

FOX ESS HV2600
Product Features
- 2.3 kWh useable capacity
- Up to max. 20 kWh
- Peak power output is 2.56kW
- Continuous power output is 1.28kW
- 15+ years of service life
- 10 years warranty
- Support 8 sets of series connection
- 90% depth of discharge
- Dimensions: 420*116*480 mm
- Weight: 29 kg
Fox ESS is a China-based energy storage battery brand founded in 2019, specialising in advanced distributed energy, energy storage products and smart energy management solutions for households and industrial/commercial enterprises.
The HV2600 is a rack mounted battery for high voltage scenarios and can be used in various storage scenarios through its modular design. The capacity of a single battery is 2.56kWh and the actual voltage is 51.2V, which can be increased by series connection and capacity expansion.
The rackmount batteries support a discharge depth of 90%, have a cycle life of more than 6000 cycles, are available in groups of up to 8 modules, weigh less than 30kg and are compatible with Fox ess hybrid inverters.

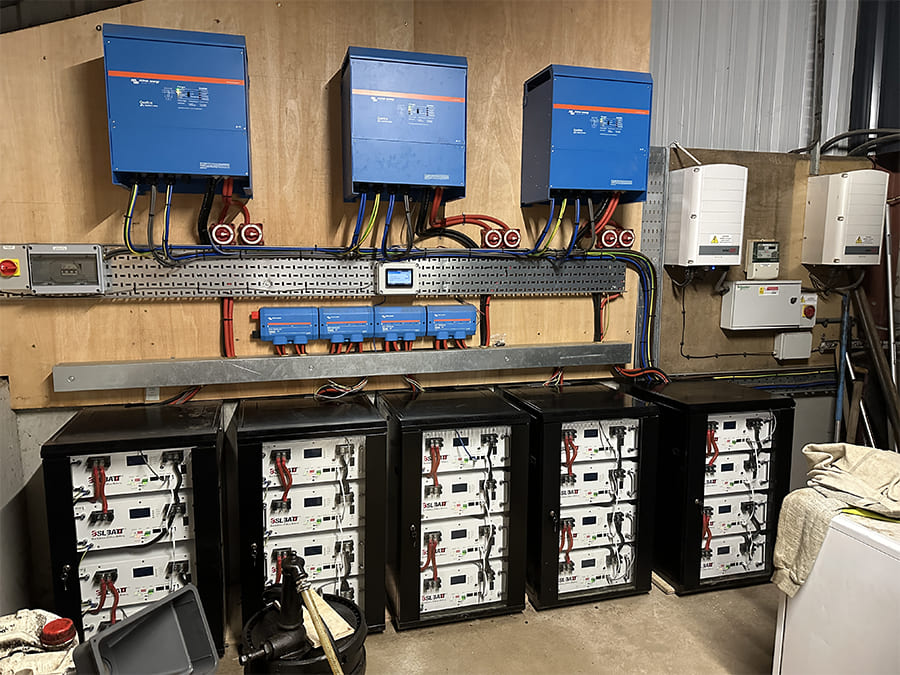

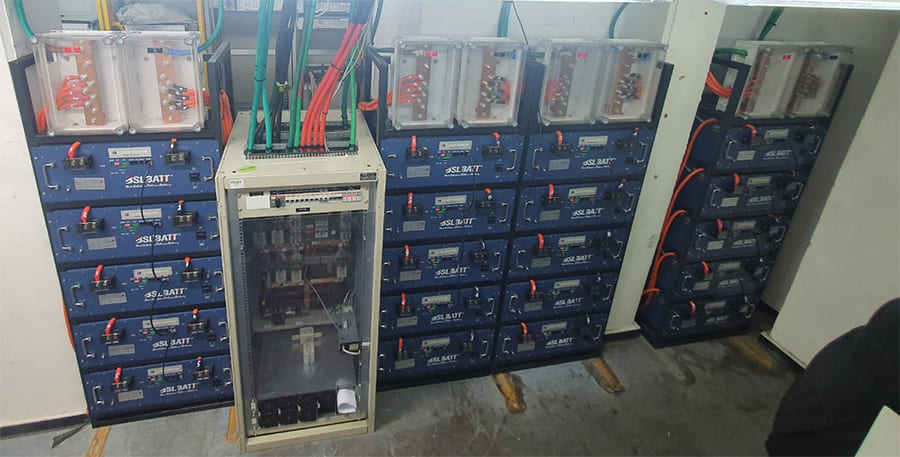

Rack Mounted Battery Installation Case Schematic
Rack mounted batteries play an important role in all areas of energy storage. The following are actual application examples:
Residential and commercial buildings:
- Case: In the UK, BSLBATT B-LFP48-100E rack mounted batteries were installed in a large warehouse, with a total of 20 batteries helping the homeowner to store 100kWh of electricity. The system not only saves the homeowner money on their electricity bill during peak energy hours, but also provides a reliable back-up power source during power outages.
- Result: With the storage battery system, the homeowner reduces their electricity bill by 30% during peak energy hours and increases their PV utilisation, with excess power from the solar panels being stored in the batteries during the day.
- Testimonial: ‘Since using the BSL rack-mounted battery system in our warehouse, we have not only reduced our costs, but we have also been able to stabilise our power supply, which makes us more competitive in the market.’
FAQs About Rack Batteries
Q: How do I install a rack battery?
A: Rack batteries are very flexible and can be installed in standard cabinets or mounted on the wall using hangers, but either way, it requires a professional technician to operate and follow the drawings and installation instructions provided by the manufacturer for installation and wiring.
Q: What is the battery life of a server rack?
A: The battery life depends on the total load power. Typically, in data centre applications, standard server rack batteries are required to provide hours to days of standby time; in home energy storage applications, server rack batteries are required to provide at least 2-6 hours of standby time.
Q: How are rack batteries maintained?
A: Under normal circumstances, lithium iron phosphate rack batteries do not require maintenance, but bare mounted rack batteries need to be periodically checked for loose or corroded connections. In addition, keeping the ambient temperature and humidity of the rack battery within the appropriate range will also help to extend battery life.
Q: Are rack batteries safe?
A: Rack batteries have a separate BMS inside, which can provide multiple protection mechanisms such as over-voltage, over-current, over-temperature or short-circuit. Lithium Iron Phosphate batteries are the most stable electrochemical technology and will not explode or catch fire in the event of a battery failure.
Q: How do rack batteries match my inverter?
A: Each rackmount battery manufacturer has a corresponding inverter protocol, please refer to the relevant documents provided by the manufacturer such as: instruction manual, inverter listing documents, etc. before purchase. Or you can contact our engineers directly, we will give you the most professional answer.
Q: Who is the best manufacturer of rackmount batteries?
A: BSLBATT has more than decades of experience in designing, producing and manufacturing lithium batteries. Our rack batteries have been added to the newsletter list of Victron, Studer, Solis, Deye, Goodwe, Luxpower and many other inverter brands, which is a testament to our market-proven product capabilities. Meanwhile, we have several automated production lines that can produce more than 500 rack batteries per day, providing 15-25 days delivery.
